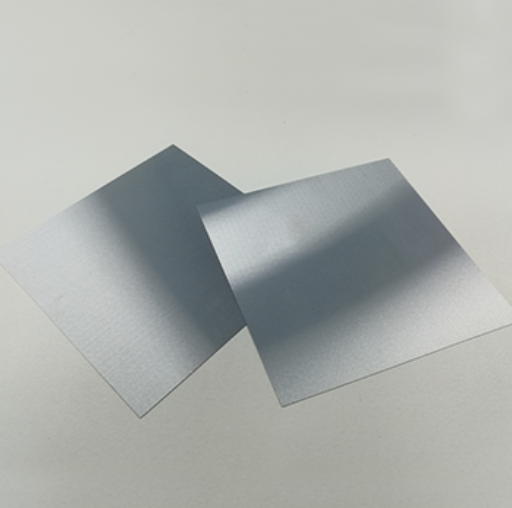

    Precision Si3n4 Silicon Nitride Ceramic Substrate Customized 0.3mm 1.0mm

    Ask Lasest Price
    Brand Name : wuxi special ceramic
    Price : us$1~us$100/P
    Payment Terms : T/T
    Supply Ability : 5000p/Month
    Delivery Time : 30days
    • Product Details
    • Company Profile

    Precision Si3n4 Silicon Nitride Ceramic Substrate Customized 0.3mm 1.0mm

    Material Introduction:
    Silicon Nitride (Si3N4) is a widely used ceramic material in high temperature application, it has high strength in both room temperature and high temperature condition, the strength of silicon nitride can be kept up to 1200ºC; the low coefficient of thermal expansion make it a ceramic material possessing excellent thermal shock resistance; at the same time, it also has good thermal conductivity

    The specification of the ceramic tray and substrate
    A.The typical thickness of the silicon nitride substrate covers 0.30mm, 0.5mm, 0.635mm, 1.0mm
    B.The biggest diameter of the round ceramic wafer can be up to 400mm in 3mm, 4mm, 5mm thick

    The main features of the Si3N4 ceramic tray and substrate
    High thermal conductivity ( up to 70 W/m.k), 3 times of alumina ceramic substrate;


    date sheet


    ItemUnitTypical Values
    Physical Properties
    Densityg/cm3>3.2
    Mechanical Properties
    HardnessHRA90
    Vickers Hardness (Hv50)HV0.5>1550
    Modulus of ElasticityGpa290
    Flexural StrengthMpa>600
    Compressive StrengthMpa2500
    Fracture toughnessMpam1/2>6.0
    Thermal Properties
    Maximum use temperature°C1200
    Thermal ConductivityW/(m.k)15-20
    Thermal Expansion Coefficient10-6/°C>3.1
    Thermal Shock ResistanceT°C500
    Specific Heat CapacityKJ/kg.K700
    Electrical Properties
    Dielectric StrengthKV/mm1
    Dielectric Constanter
    Volume Resistivity at 20°CΩ.cm1.0X10(12)


    company information
    Wuxi Special Ceramic Co.,Ltd mainly produces alumina, Silicon nitride, Zirconia, Steatite, Boron nitride, Cordierite,mullite products, widely used in metal welding, electronic conductor, mechanics, assembling, insulation, chemicals, instrument, textile, nuclear industry, aerial field.We accept trial produce according to the drawing or sample.It usually takes 30 days to finish trial product.Mass produce usually takes 30 days.Goods' package is carton or PLT.It can be negotiable with each other.
    We mainly sell goods to toshiba lighting group in Japan and Europe.Our aim is to deliver goods with high quality at quick delivery date.
