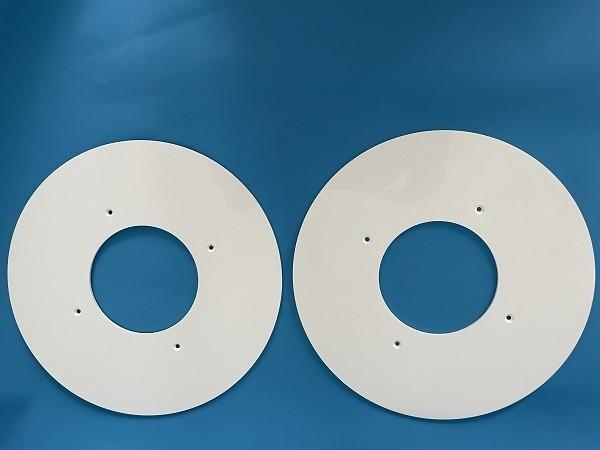

Wear Resistant Industrial Customized Insulation Precision High Al2O3 99%Aluminum OxidevCeramic Ring
Aluminum oxide (Alumina) has an extensive application due to its versatility and low cost of material than other advanced ceramics. Alumina offers high electrical insulation resistance, high-temperature resistance, strong hardness, wear resistance, and good chemical stability, making it a good material to withstand high temperature and chemical corrosion.
Our factory produces a selection of purity of alumina from 75% to 99.8%, all of the ceramic parts we supplied are with a dense body via dry pressing, hot pressing, ceramic injection molding, and ISO pressing. In order to achieve some special application for fitting, reducing the friction, increasing the insulation, we provide a series of secondary processes after sintering, covering CNC machining, polishing, glazing, and metalizing.
We manufacture a wide range of alumina ceramic rings, including ceramic tubes, ceramic rings, ceramic discs, ceramic rods, ceramic arms, ceramic wire guides. Whether, it's a prototyping case, or high volume demand, we believe we are able to provide you with a desirable solution.

The accuracy achieved after precision ceramic machining
(1) Axis: roundness 0.002 mm, concentricity 0.002 mm, smoothness Ra0.1;
(2) Hole: the minimum processing hole diameter is 0.2 mm and the depth is up to 6mm;
(3) Slot: min. value to be 0.1 mm of narrow groove, and grooves with custom shapes;
(4) Plane: 0.1mm sheet with minimum processable thickness, parallelism 0.001mm, measurement tolerance 0.001 mm, finish Ra0.1;
(5) Thread: The minimum machinable M2 internal thread, the accuracy of GB-7h, the external thread size is not limited, the accuracy is GB-6g.


Specification

Our Company
Wuxi Special Ceramic Electrical mainly produces alumina, Silicon nitride, Zirconia, Steatite, Boron nitride, Cordierite,mullite products, widely used in metal welding, electronic conductor, mechanics, assembling, insulation, chemicals, instrument, textile, nuclear industry, aerial field.We accept trial produce according to the drawing or sample.It usually takes 15 days to finish trial product.Mass produce usually takes 30 days.Goods' package is carton or PLT.It can be negotiable with each other.
We mainly sell goods to toshiba lighting group in Japan and Europe.Our aim is to deliver goods with high quality at quick delivery date.



quality guarantee:mass produce by 100% inspection

Our History

Wuxi Special Ceramic Electrical as a leading special ceramic manufacturer,the factory is located in Chinese famous pottery town “YiXING” city about 200 km from Shanghai. From the beginning of businees ,has been dealing with export business for more than 10 years.

We specialized in special ceramics for more than 20 years. Now,we own 1 gas shuttle kilns, 3 full-automation electric pushed slab kilns and so on.

Our company mainly produces alumina, Silicon nitride, Zirconia, Steatite, Boron nitride, Cordierite,mullite products, widely used in metal welding, electronic conductor, mechanics, assembling, insulation, chemicals, instrument, textile, nuclear industry, aerial  field.

We mainly sell goods to toshiba lighting group in Japan.Our aim is to deliver goods with high quality at quick delivery date.

Our products below

A Electronic / electric ceramic (electronic porcelain)

1) Ignition electrodes, Ceramic igniter, ignitor Ceramic sparking

2) Ceramic insulators

3) Ceramic lamps

4) ceramic shell for electronic conductor

5) Ceramic bobbins

6) Ozone generator

B) Textile Ceramics

Ceramic guide, beads, eyelet, slit, roller, hook ect.

C) Engineering & Mechanical ceramics

1) Ceramic rod,

2) Ceramic tube,

3) Ceramic seal,

4) Ceramic threaded shaft, Ceramic bolt

5) Ceramic nozzle,

6) Ceramic Heat-resisting part

Production Market

Europe,Japan
