Product Description

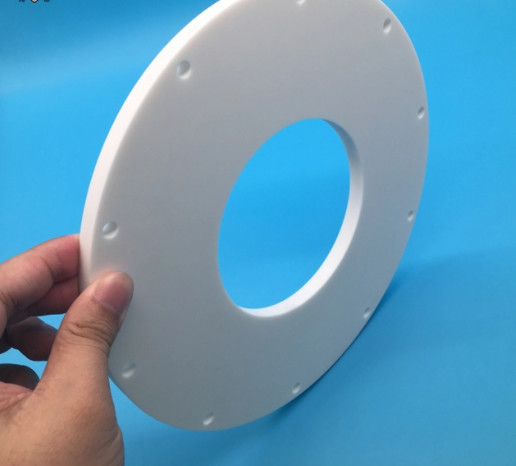

Macor mica machinable Ceramics:
Microcrystalline glass ceramics, also known as machinable ceramics, are mica glass-ceramics with synthetic mica as the main crystalline phase, and are ceramic
materials that can be machined. Microcrystalline glass ceramics have excellent processing properties, vacuum properties,
electrical insulation properties, and high temperature and chemical
resistance.
Macor ceramics have excellent processing properties, vacuum properties,
electrical insulation properties, and high temperature and chemical
resistance. Glass-ceramics with high mechanical strength of
glass-ceramics, machinable glass-ceramics and bioactive glass-ceramics.
Application industry:
Machinery, electronic, limitary, aerospace etc.
Specific application: Machined equipment high temperature insulated
parts, electronic equipment high temperature insulated parts.
Macor ceramics are particularly suitable for automotive, military, aerospace,
precision instruments, medical equipment, electric vacuum devices,
electron beam exposure machines, textile machinery, sensors, mass
spectrometers and energy spectrometers. For some thin-walled coil
bobbins, precision instrumented insulation brackets, and
complex-shaped devices with high precision requirements, glass-ceramics are more suitable, and they can be processed into any shape.
Data sheet
| Machinable mica (Macor) Ceramic Properties |
| Item | Unit | Typical Values |
| Physical Properties |
| Color | | White |
| Main Composition | | Mg3K[AlF2O(SiO3)3],SiO2 |
| Density | g/cm3 | 2.60 |
| Apparent Porosity | | 0.07% |
| Water Absorption | | 0 |
| Normal Temperature Outlet Rate | ml/S·cm2 | 8.8*10-9 |
| Helium Transmission Rate | ml/S | 1*10-10 |
| Mechanical Properties |
| Rockwell Hardness(45N) | R45N | 40 |
| Vickers Hardness (Load 500g) | Gpa(Kg/mm2) | 11.5(1175) |
| Flexural Strength (20°C) | Mpa | >108 |
| Compressive Strength (20°C) | Mpa | >508 |
| Modulus of Elasticity (25°C) | Gpa | 65 |
| Impact Toughness | KJ/m2 | >2.56 |
| Thermal Properties |
| Thermal Conductivity (25°C) | W/m.K | 1.71 |
| Thermal Expansion Coefficient | 10-7/°C | 72 |
| Thermal Shock Resistance | T°C | 200 |
| Perennial Temperature | °C | 800 |
| Electric Properties |
| Dielectric Strength | KV/mm | >40 |
| Volume Resistivity(25°C) | Ω.cm | 1.08*1016 |
| Volume Resistivity(200°C) | Ω.cm | 1.5*1012 |
| Volume Resistivity(500°C) | Ω.cm | 1.1*109 |
| Dielectric Loss | | 1-4*10-3 |
| Dielectric Constant | Er | 6-7 |
Company Introduce
Wuxi Special Ceramic Electrical Co.,Ltd mainly produces alumina, Silicon nitride, Zirconia, Steatite, Boron nitride,
Cordierite,mullite products, widely used in metal welding, electronic conductor, mechanics,
assembling, insulation, chemicals, instrument, textile, nuclear
industry, aerial field.We accept trial produce according to the
drawing or sample.It usually takes 15 days to finish trial
product.Mass produce usually takes 30 days.Goods' package is carton
or PLT.It can be negotiable with each other.
We mainly sell goods to toshiba lighting group in Japan and
Europe.Our aim is to deliver goods with high quality at quick
delivery date.
Quality Control
mass production by 100% inspection
