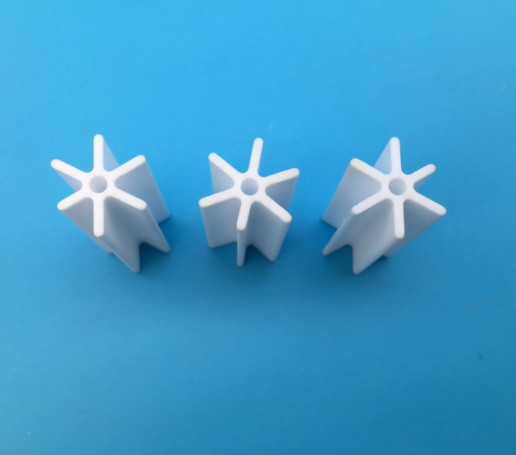

Wear Insulation Cnc Macor Machinable Ceramic Parts Tube Bush Sleeve Ferrule

Product Categories

Wuxi Special Ceramic Electrical Co.,Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Wear Insulation Cnc Macor Machinable Ceramic Parts Tube Bush Sleeve Ferrule

Ask Lasest Price
Brand Name :	wuxi special ceramic
Price :	us$0.1~us$10/p
Payment Terms :	T/T
Supply Ability :	10000P/Month
Delivery Time :	negotiable

Add to Cart

Product Details
Company Profile

Wear Insulation Cnc Macor Machinable Ceramic Parts Tube Bush Sleeve Ferrule

Product Description

Macor mica machinable Ceramics:

Macor ceramics have excellent processing properties, vacuum properties, electrical insulation properties, and high temperature and chemical resistance.

Wear Insulation Cnc Macor Machinable Ceramic Parts Tube Bush Sleeve Ferrule

Data sheet

Machinable mica (Macor) Ceramic Properties
Item	Unit	Typical Values
Physical Properties
Color		White
Main Composition		Mg3K[AlF2O(SiO3)3],SiO2
Density	g/cm3	2.60
Apparent Porosity		0.07%
Water Absorption		0
Normal Temperature Outlet Rate	ml/S·cm2	8.8*10-9
Helium Transmission Rate	ml/S	1*10-10
Mechanical Properties
Rockwell Hardness(45N)	R45N	40
Vickers Hardness (Load 500g)	Gpa(Kg/mm2)	11.5(1175)
Flexural Strength (20°C)	Mpa	>108
Compressive Strength (20°C)	Mpa	>508
Modulus of Elasticity (25°C)	Gpa	65
Impact Toughness	KJ/m2	>2.56
Thermal Properties
Thermal Conductivity (25°C)	W/m.K	1.71
Thermal Expansion Coefficient	10-7/°C	72
Thermal Shock Resistance	T°C	200
Perennial Temperature	°C	800
Electric Properties
Dielectric Strength	KV/mm	>40
Volume Resistivity(25°C)	Ω.cm	1.08*1016
Volume Resistivity(200°C)	Ω.cm	1.5*1012
Volume Resistivity(500°C)	Ω.cm	1.1*109
Dielectric Loss		1-4*10-3
Dielectric Constant	Er	6-7

Company Introduce

Wuxi Special Ceramic Electrical Co.,Ltd mainly produces alumina, Silicon nitride, Zirconia, Steatite, Boron nitride, Cordierite,mullite products, widely used in metal welding, electronic conductor, mechanics, assembling, insulation, chemicals, instrument, textile, nuclear industry, aerial field.We accept trial produce according to the drawing or sample.It usually takes 15 days to finish trial product.Mass produce usually takes 30 days.Goods' package is carton or PLT.It can be negotiable with each other.
We mainly sell goods to toshiba lighting group in Japan and Europe.Our aim is to deliver goods with high quality at quick delivery date.

Quality Control

mass production by 100% inspection
