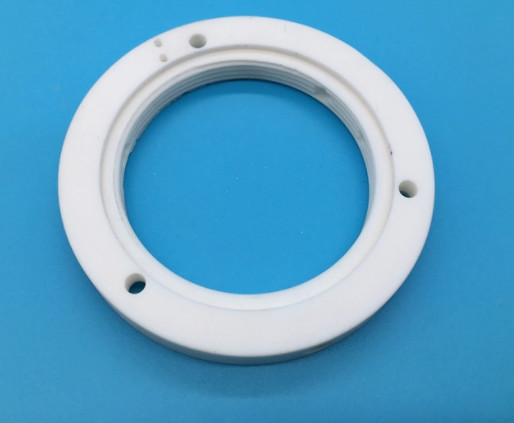

machinable mica macor ceramic insulating wearable plate frange ring
Product Description
Macor mica machinable Ceramics:
Microcrystalline glass ceramics, also known as machinable ceramics, are mica glass-ceramics with synthetic mica as the main crystalline phase, and are ceramic
materials that can be machined. Microcrystalline glass ceramics have excellent processing properties, vacuum properties,
electrical insulation properties, and high temperature and chemical
resistance. Glass-ceramics with high mechanical strength,
glass-ceramics, machinable glass-ceramics and bioactive
glass-ceramics.
Macor ceramics have excellent processing properties, vacuum properties,
electrical insulation properties, and high temperature and chemical
resistance. Glass-ceramics with high mechanical strength of
glass-ceramics, machinable glass-ceramics and bioactive
glass-ceramics.
A. High intensity and light weight
Glass-ceramics are harder than natural stone and are not easily damaged. The
thickness of the material can be matched with the construction
method, which is in line with the light and sturdy mainstream of
modern buildings.
B. rich and varied colors
Glass-ceramics are made by the accumulation method. There is no natural stone
texture (which breaks from here). The accumulation method is a
method that can produce rich color tones, with a white color as the
basic color and a rich color system, and white The three colors of
rice and gray are most often used.
C. Excellent weather resistance and durability
The acid-resistant and alkali-resistant glass-ceramics are superior to granite and marble, and are inherently inorganic
materials. Even when exposed to wind and rain and polluted air,
they will not cause deterioration, fading, and inferior strength.
D. Electrical Properties
Microcrystalline glass ceramics is an excellent high-temperature
electrical insulating material that can be used in many electrical
equipments. It has high electrical insulation strength.
E.corrosion resistant
because it is completely composed of inorganic materials, so there
is no aging and no deformation, very stable to various organic
solvents and good acid and alkali corrosion resistance.
Properties
High hardness, high strength, wear resistance, corrosion
resistance, high temperacture (1600°), good thermal diffusivity,
good insulativity, low cost etc.
Data sheet
| Machinable mica (Macor) Ceramic Properties |
| Item | Unit | Typical Values |
| Physical Properties |
| Color | | White |
| Main Composition | | Mg3K[AlF2O(SiO3)3],SiO2 |
| Density | g/cm3 | 2.60 |
| Apparent Porosity | | 0.07% |
| Water Absorption | | 0 |
| Normal Temperature Outlet Rate | ml/S·cm2 | 8.8*10-9 |
| Helium Transmission Rate | ml/S | 1*10-10 |
| Mechanical Properties |
| Rockwell Hardness(45N) | R45N | 40 |
| Vickers Hardness (Load 500g) | Gpa(Kg/mm2) | 11.5(1175) |
| Flexural Strength (20°C) | Mpa | >108 |
| Compressive Strength (20°C) | Mpa | >508 |
| Modulus of Elasticity (25°C) | Gpa | 65 |
| Impact Toughness | KJ/m2 | >2.56 |
| Thermal Properties |
| Thermal Conductivity (25°C) | W/m.K | 1.71 |
| Thermal Expansion Coefficient | 10-7/°C | 72 |
| Thermal Shock Resistance | T°C | 200 |
| Perennial Temperature | °C | 800 |
| Electric Properties |
| Dielectric Strength | KV/mm | >40 |
| Volume Resistivity(25°C) | Ω.cm | 1.08*1016 |
| Volume Resistivity(200°C) | Ω.cm | 1.5*1012 |
| Volume Resistivity(500°C) | Ω.cm | 1.1*109 |
| Dielectric Loss | | 1-4*10-3 |
| Dielectric Constant | Er | 6-7 |
Application industry:
Machinery, electronic, limitary, aerospace etc.
Specific application: Machined equipment high temperature insulated
parts, electronic equipment high temperature insulated parts.
Macor ceramics are particularly suitable for automotive, military, aerospace,
precision instruments, medical equipment, electric vacuum devices,
electron beam exposure machines, textile machinery, sensors, mass
spectrometers and energy spectrometers. For some thin-walled coil
bobbins, precision instrumented insulation brackets, and
complex-shaped devices with high precision requirements, glass-ceramics are more suitable, and they can be processed into any shape.
Company Introduce
Wuxi Special Ceramic Electrical Co.,Ltd mainly produces alumina, Silicon nitride, Zirconia, Steatite, Boron nitride,
Cordierite,mullite products, widely used in metal welding, electronic conductor, mechanics,
assembling, insulation, chemicals, instrument, textile, nuclear
industry, aerial field.We accept trial produce according to the
drawing or sample.It usually takes 15 days to finish trial
product.Mass produce usually takes 30 days.Goods' package is carton
or PLT.It can be negotiable with each other.
We mainly sell goods to toshiba lighting group in Japan and
Europe.Our aim is to deliver goods with high quality at quick
delivery date.
Quality Control
mass production by 100% inspection
