High Purity 96% Alumina Ceramic Shaft Heater Insulators Ring Tube Plate Rod Thread Part

Ask Lasest Price
Brand Name :	wuxi special ceramic
Price :	us$1~us$1000/P
Payment Terms :	T/T
Supply Ability :	10000P/Month
Delivery Time :	negotiable

Add to Cart

Product Details
Company Profile

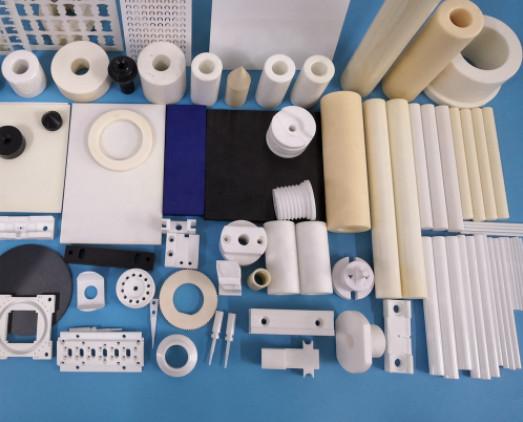

High Purity 96% Alumina Ceramic Shaft Heater Insulators Ring Tube Plate Rod Thread Part

Insulators Ceramic Ring/Tube/Rod/Plate thread part Supplier

Advanced ceramic application propect are very widely.Such as be used in aerospace,aviation,military industry,nuclear power,machinery,texile,chemical,electronic,food,medical,ect.

Alumina Ceramic Properties		96% Alumina Ceramic	99% Alumina Ceramic
Item	Unit	Typical Values
Physical Properties
Color		White	Ivory
Density	g/cm3	3.7	3.85
Alumina Content	%	96%	99%
Gas permeability		0	0
Water Absorption		0	0
Mechanical Properties
MONS' Hardness	Grade	9	9
Rockwell Hardness	HRA	80	82
Vickers Hardness (Hv50)	Gpa(Kg/mm²)	15.7(1600)	15.7(1600)
Flexural Strength(20°C)	Mpa	300	330
Compressive Strength(20°C)	Mpa	2000	2000
Modulus of Elasticity	Gpa	275
Poisson's Ratio (20°C)		0.22-0.23
Fracture Toughness(20°C)	MPam1/2	3.5	4
Thermal Properties
Thermal Conductivity(20°C-400°C)	W(m.K)	25	27.5
Thermal Expansion	10-6/°C	6.5-7.5	7.6
Maximum Use Temperature	°C	1600	1650
Electronic Properties
Dielectric	KV/mm	>12	>10
Dielectric Constant	Er	9-10	9.1
Dielectric Loss Angle(1MHz)		0.0002	0.0002-0.0003

Product feature

Compared with metal materials, the advanced ceramic with high hardness, high strength, high temperature, wear resistance, corrosion resistance, acid and alkali resistance, oxidation resistance, insulation, nonmagnetic, good chemical stability and other excellent performances.

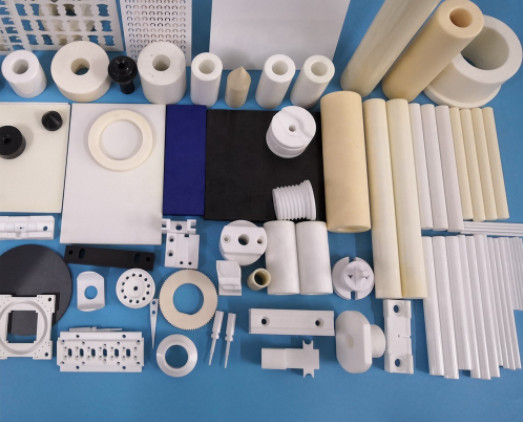

High Purity 96% Alumina Ceramic Shaft Heater Insulators Ring Tube Plate Rod Thread Part

Our services

Material Service:

Zirconia Ceramic: Mg-PSZ, Y-TZP, ZTA

Alumina Ceramic: 96%, 99%, 99.5% Al2O3

Silicon Nitride: Si3N4, RBSN, SRBSN, GPSN

Machinable Ceramic: Macor Ceramic

Machining Service:

Laser Cutting

CNC Machining

Cernerless Grinding and Inside Hole Honing

Surface Grinding and Polishing

Company introduce

Wuxi Special Ceramic Electrical Co.,Ltd mainly produces alumina, Silicon nitride, Zirconia, Steatite, Boron nitride, Cordierite,mullite products, widely used in metal welding, electronic conductor, mechanics, assembling, insulation, chemicals, instrument, textile, nuclear industry, aerial field.We accept trial produce according to the drawing or sample.It usually takes 15 days to finish trial product.Mass produce usually takes 30 days.Goods' package is carton or PLT.It can be negotiable with each other.
We mainly sell goods to toshiba lighting group in Japan and Europe.Our aim is to deliver goods with high quality at quick delivery date.

mass production by 100% inspection
