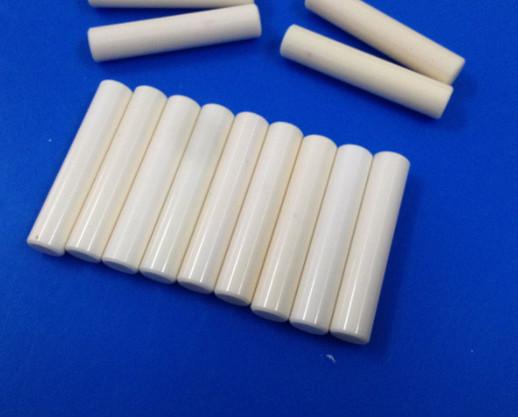

Medical Aviation Alumina Machining Rod Needle High Purity Hardness Wear Corrosion

Ask Lasest Price
Brand Name :	wuxi special ceramic
Price :	us$1~us$1000/P
Payment Terms :	T/T
Supply Ability :	10000P/Month
Delivery Time :	negotiable

Add to Cart

Product Details
Company Profile

Medical Aviation Alumina Machining Rod Needle High Purity Hardness Wear Corrosion

precision medical aviation industrial alumina machining rod needle,alumina machining rod,alumina machining needle

Ceramic Plunger:

The ceramic plunger adopts the ultra-hard wear resistance of modern engineering ceramic materials, and can be assembled by ceramic metallization bonding, welding, inlay and socket technology. It is an ideal substitute for similar metal pumps and has been widely used in medical equipment, environmental engineering, petroleum, chemical and other industries.

Alumina ceramic properties:

A.Ceramic plunger adopts high-performance technical ceramic material, which has high hardness, wear resistance, high temperature resistance and corrosion resistance. Ensure material performance is reliable.
B. The microporous structure obtained by the unique working method of the ceramic plunger working surface has self-lubricating effect, which changes the mechanism of sliding friction and lubrication of the conventional plunger pump.
C.The inner cavity surface adopts a fluid structure with no dead angles or grooves. The surface of the inner cavity is matched with the surface of the plunger by an advanced high-precision internal and external cylindrical grinding machine to the mirror surface, and the outer surface is vibrated and polished to facilitate cleaning and disinfection.
D. The structure of the pump body is finely sealed with the product structure for easy disassembly.
E. These products have been tested for corrosion resistance and acid and alkali resistance, and their indicators have reached the level of similar foreign products.

Medical Aviation Alumina Machining Rod Needle High Purity Hardness Wear Corrosion

data sheet

Item	Unit	Typical Values
Physical Properties
Color	White/Ivory
Density	g/cm3	3.85
Alumina Content	%	99%
Gas permeability	0
Water Absorption	0
Mechanical Properties
MONS’ Hardness	82
Vickers Hardness (Hv50)	Gpa(Kg/mm²)	15.7(1600)
Flexural Strength(20°C)	Mpa	330
Compressive Strength(20°C)	Mpa	2000
Fracture Toughness(20°C)	MPam1/2	4
Thermal Properties
Thermal Conductivity(20°C-400°C)	W(m.K)	27.5
Thermal Expansion Coefficient	10-6/°C	7.6
Thermal Shock Resistance	T°C	200
Maximum Use Temperature	°C	1650
Electronic Properties
Dielectric Strength	KV/mm	>10
Dielectric Constant	er	9.1
Dielectric Loss Angle(1MHz)	0.0002-0.0003
Volume Resistivity	Ω.cm	>10(14)

Our services

Material Service:

Zirconia Ceramic: Mg-PSZ, Y-TZP, ZTA

Alumina Ceramic: 96%, 99%, 99.5% Al2O3

Silicon Nitride: Si3N4, RBSN, SRBSN, GPSN

Machinable Ceramic: Macor Ceramic

Machining Service:

Laser Cutting

CNC Machining

Cernerless Grinding and Inside Hole Honing

Surface Grinding and Polishing

Company introduce

Wuxi Special Ceramic Electrical Co.,Ltd mainly produces alumina, Silicon nitride, Zirconia, Steatite, Boron nitride, Cordierite,mullite products, widely used in metal welding, electronic conductor, mechanics, assembling, insulation, chemicals, instrument, textile, nuclear industry, aerial field.We accept trial produce according to the drawing or sample.It usually takes 15 days to finish trial product.Mass produce usually takes 30 days.Goods' package is carton or PLT.It can be negotiable with each other.
We mainly sell goods to toshiba lighting group in Japan and Europe.Our aim is to deliver goods with high quality at quick delivery date.

mass production by 100% inspection
